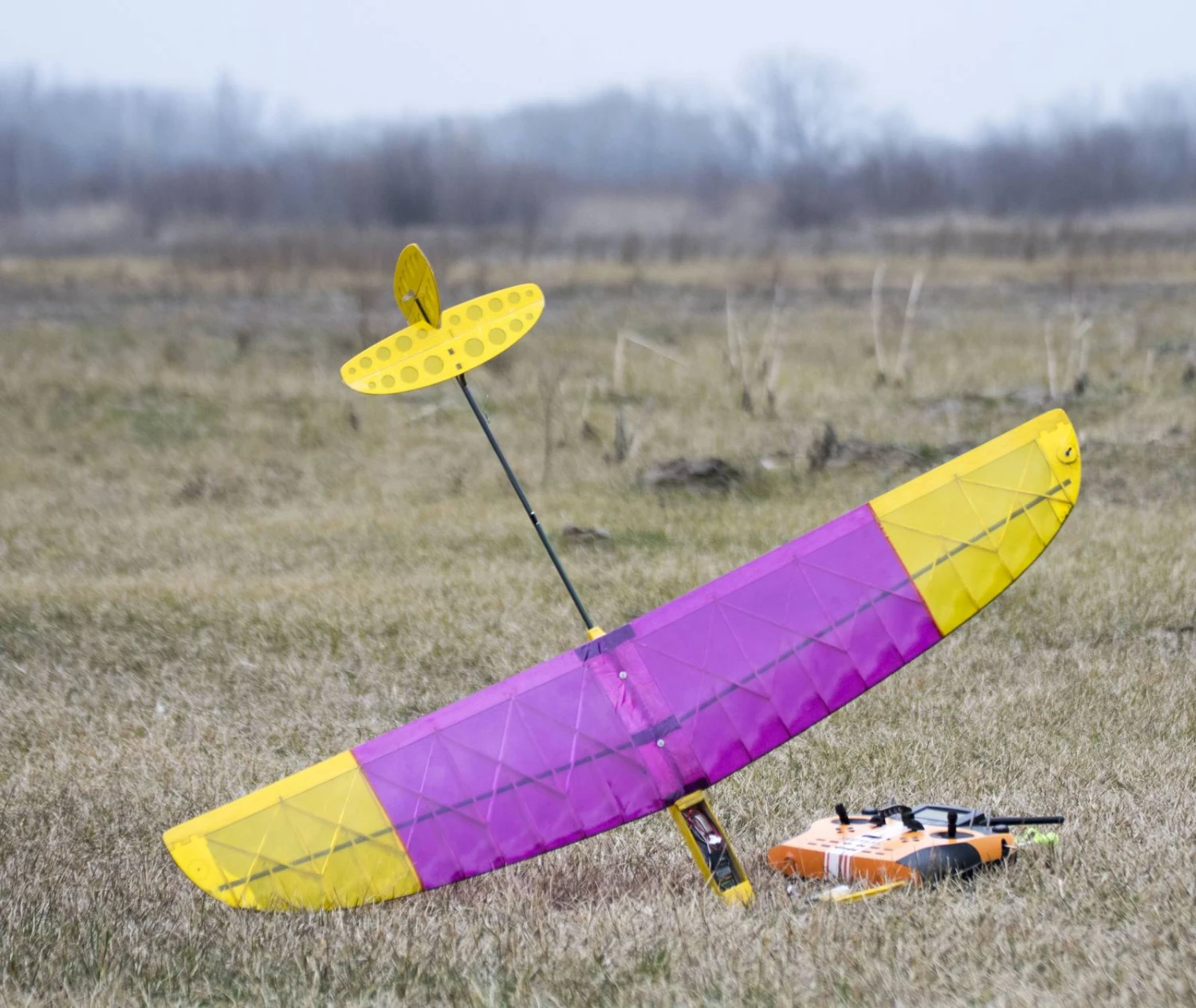

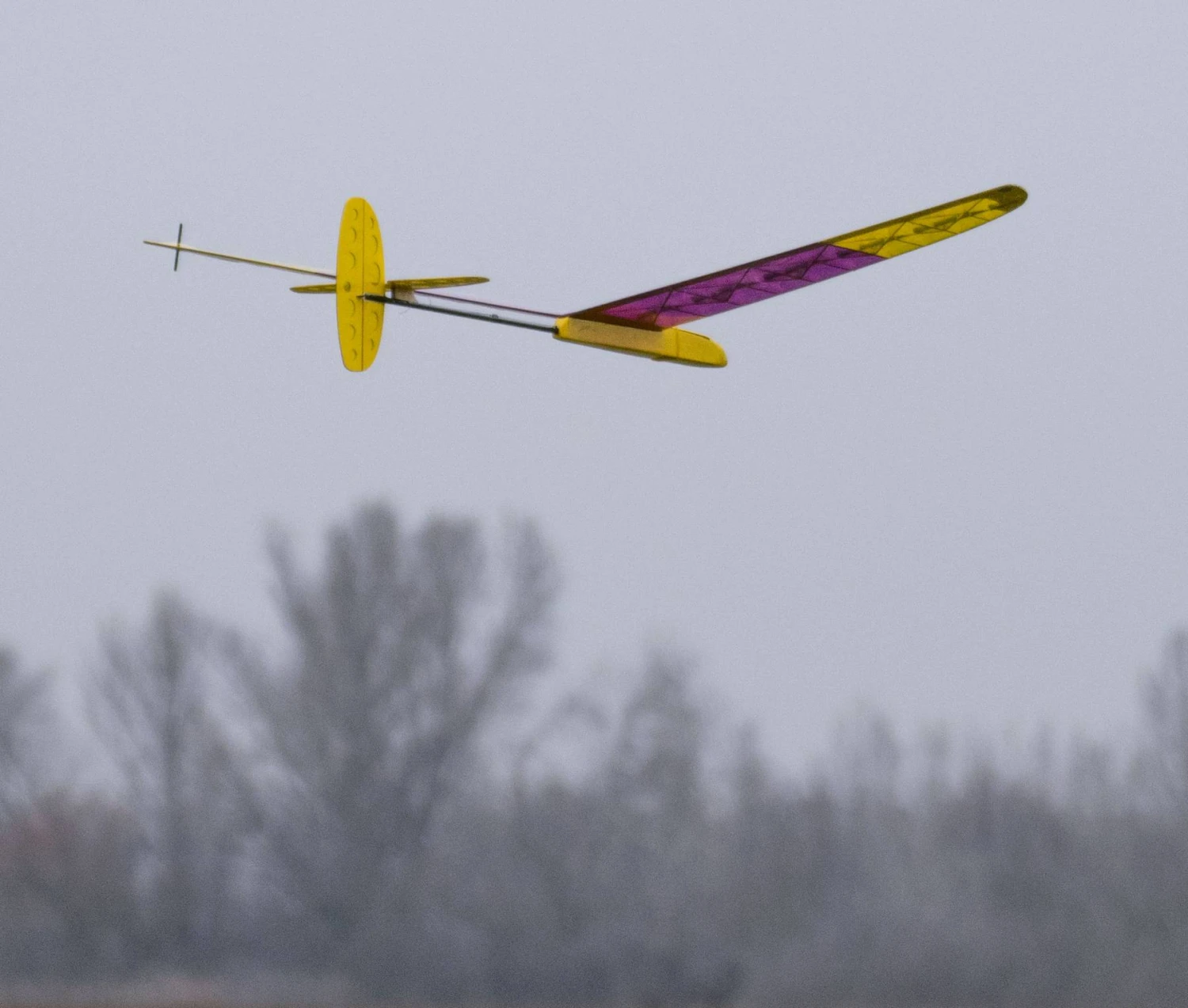

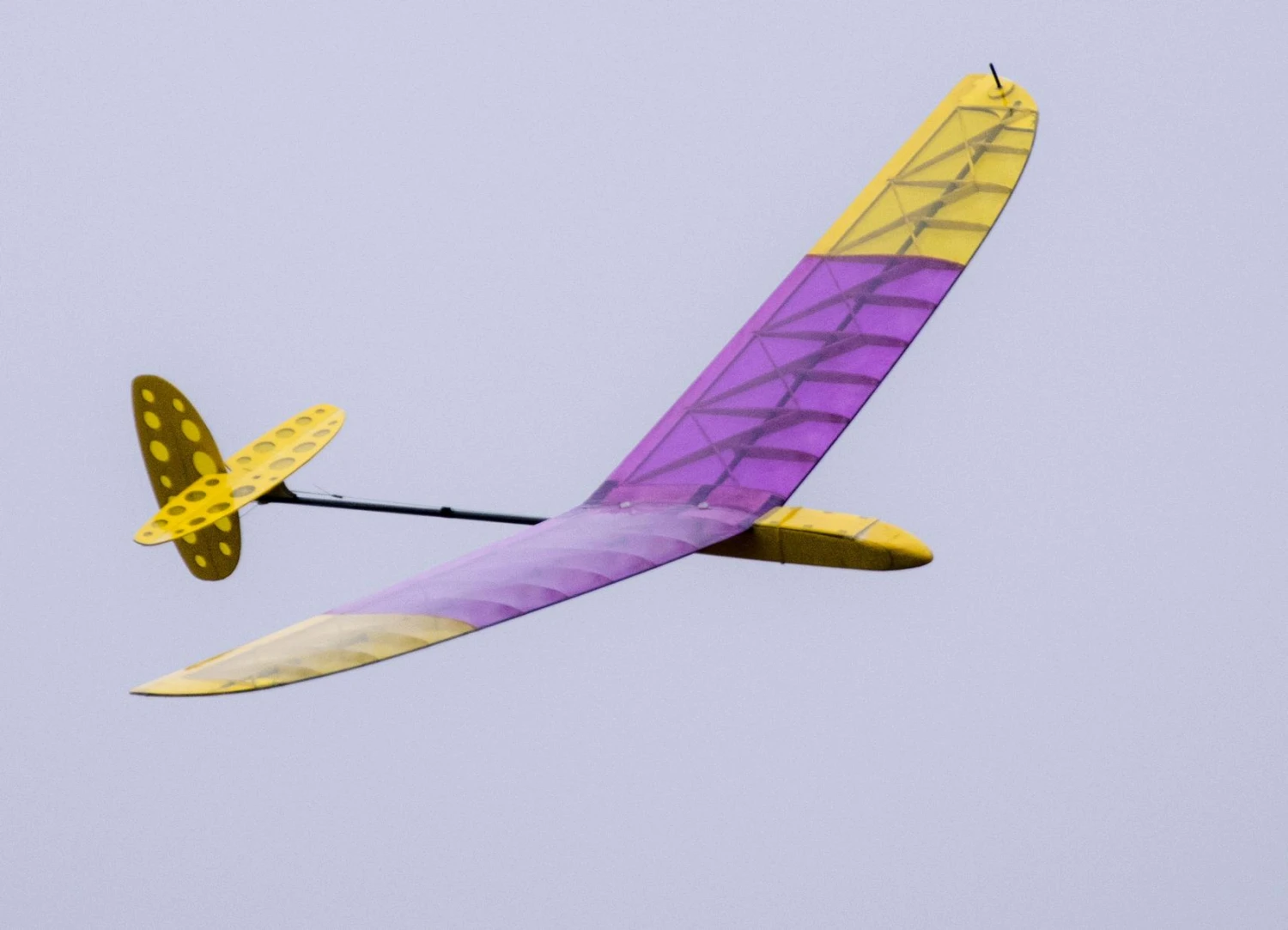

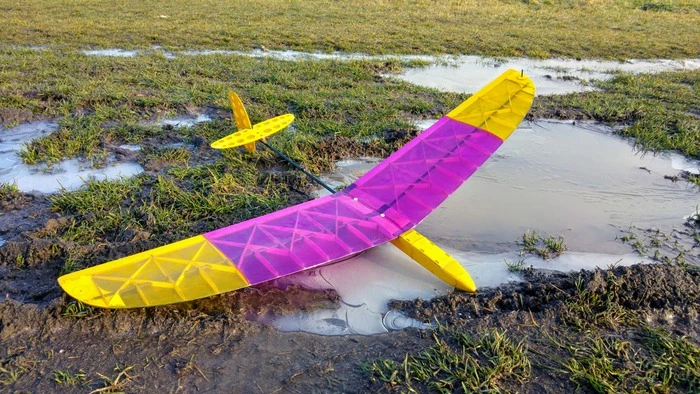

Alt 1m DLG

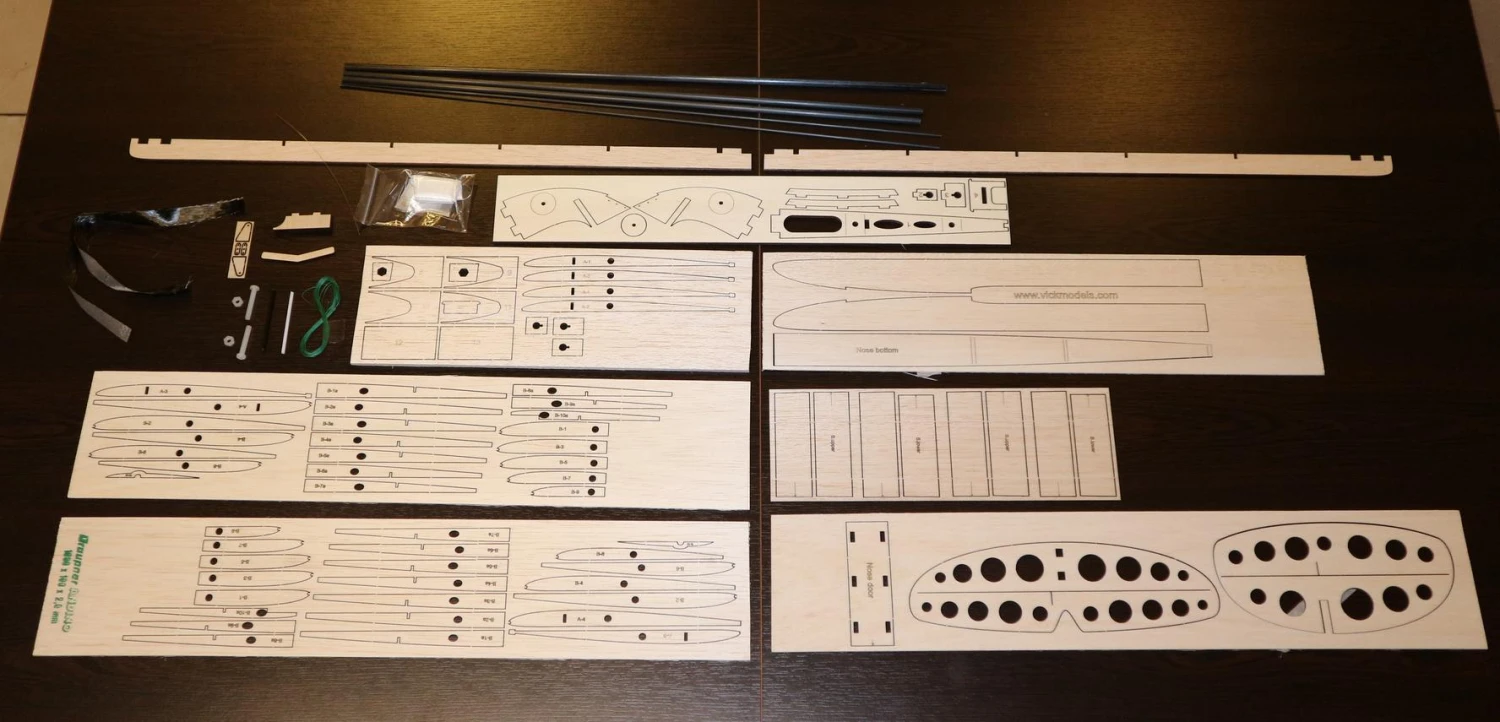

The Alt is a great value 1m built-it yourself carbon and balsa mini DLG.

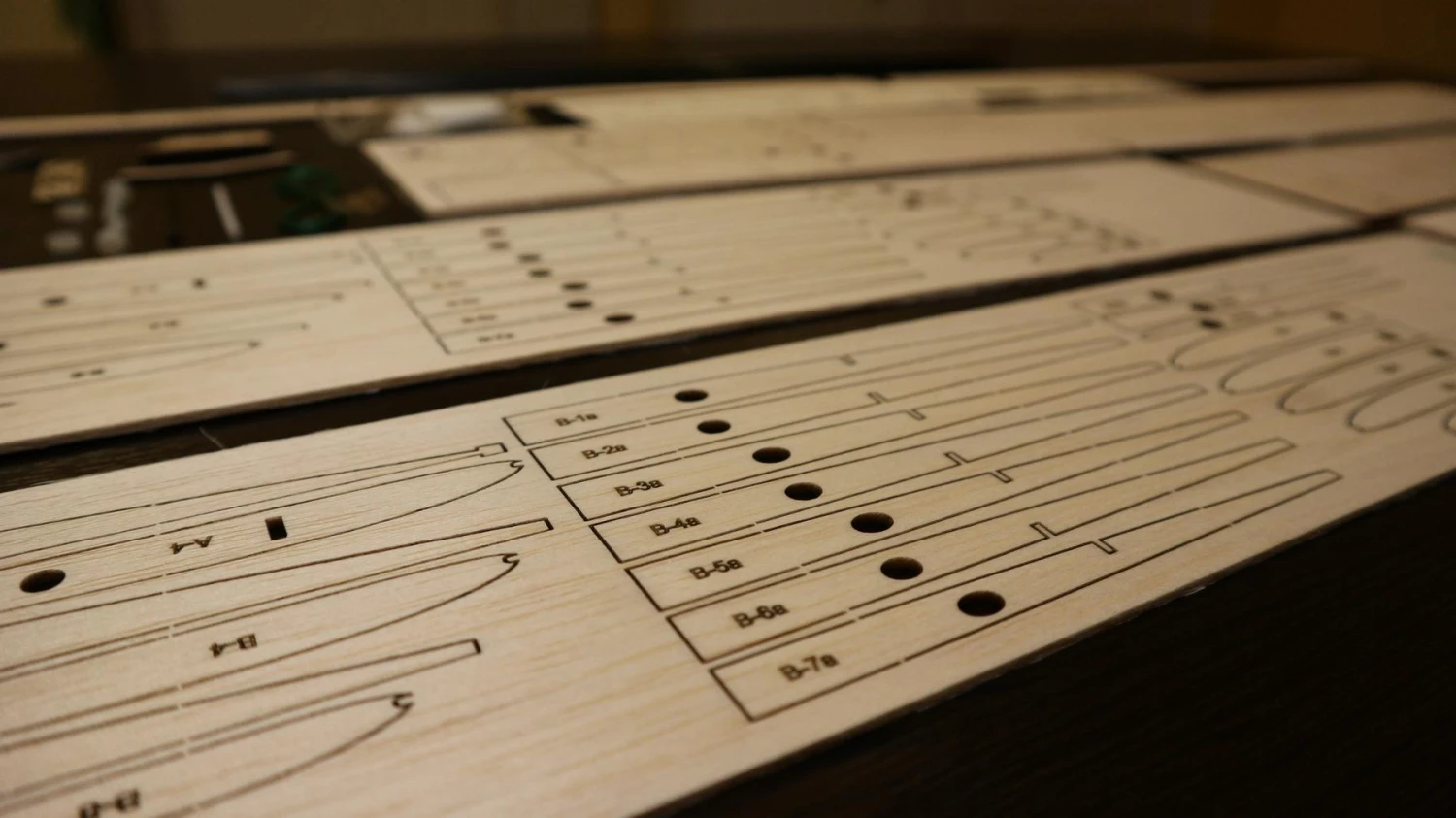

This balsa, carbon and film quick-build DLG has a fantasic bang/buck ratio and surprisingly good flight performance from a very reasonable budget. Lots of useful info in this and this RCGroups threads.

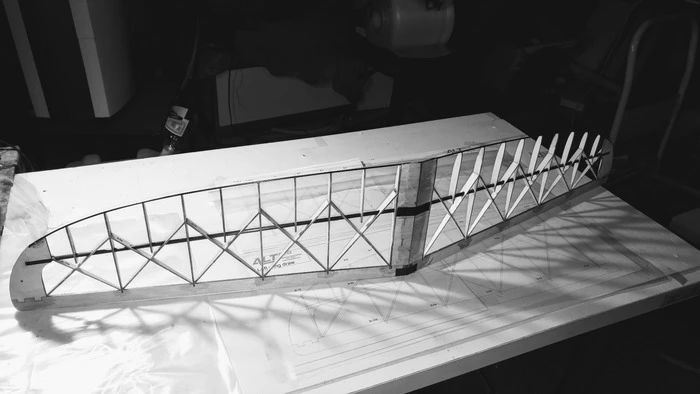

Check out this excellent Alt Build Log.

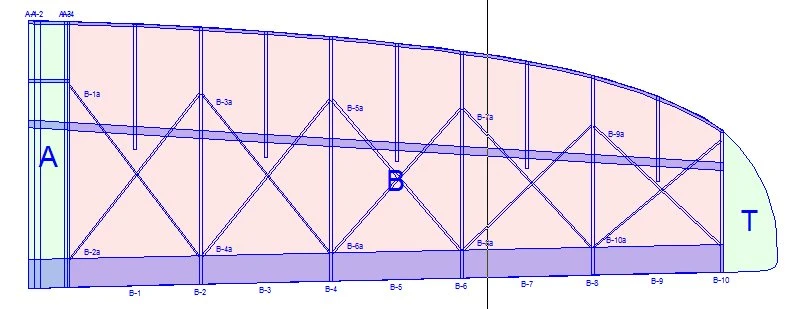

Download the plans using the links below the More details heading below.

We recommend Solite, Oralight or Feather Cover covering material for this model.

Alt DLG Specifications
Wing span	1.0 m	39 in
Wing area	15.1 dm2	234 sq in
Length	76 cm	30 in
Flying weight from	198 g	7.0 oz
Wing loading	13.1 g/dm	4.3 oz/sq ft
Aspect ratio	6.6
Wing airfoil	MH32
Dihedral angle	11.0º
Centre of Gravity	60-68 mm from wing leading edge
Controls	Rudder, elevator

Alt DLG Typical Weights
Fuselage	44 g	1.6 oz
Wing	100 g	3.5 oz
Fin	7 g	0.2 oz
Tailplane	7 g	0.2 oz
Total structure	158 g	5.6 oz
Receiver	5 g	0.2 oz
Rudder servo	5 g	0.2 oz
Elevator servo	5 g	0.2 oz
Battery	20 g	0.7 oz
Noseweight	5 g	0.2 oz
Flying weight	198 g	7.0 oz

Recommended R/C-nano gear only
Elevator & rudder servos	Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Hitec HS-40, KST X06
Receiver	Orange compatible, Lemom compatible, Jeti Duplex R4 & R5, Multiplex Mlink RX-6-DR Light*, FrSky D4R II
Battery	Radient 1S 500 mAh, Ytong 1S 380 mAh LiPo, HyperFlight 1S 240 mAh LiPo, HyperFlight 150 mAh 4.8V NiMH, HyperFlight 300 mAh, Dream-Flight 300 mAh
