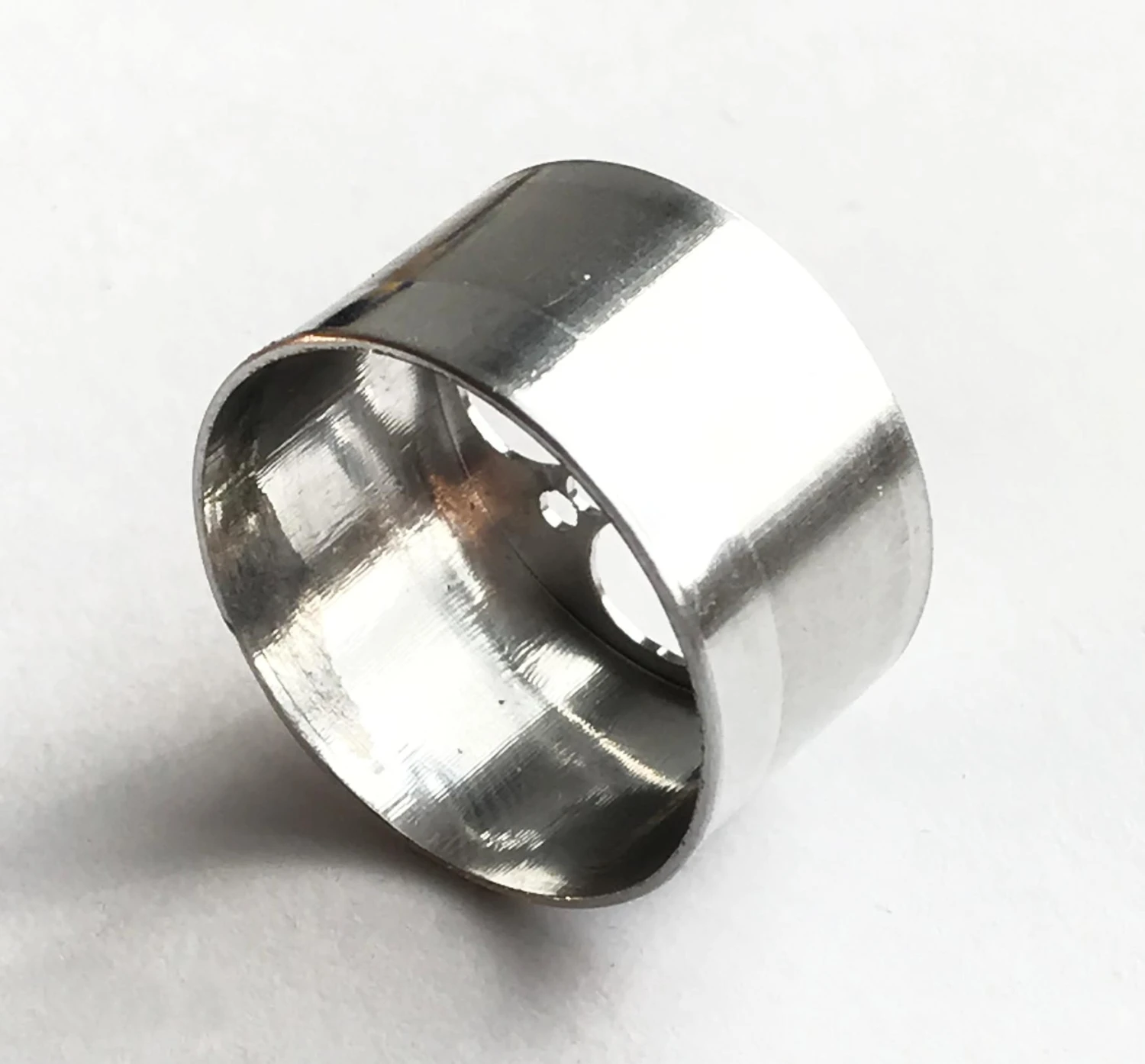

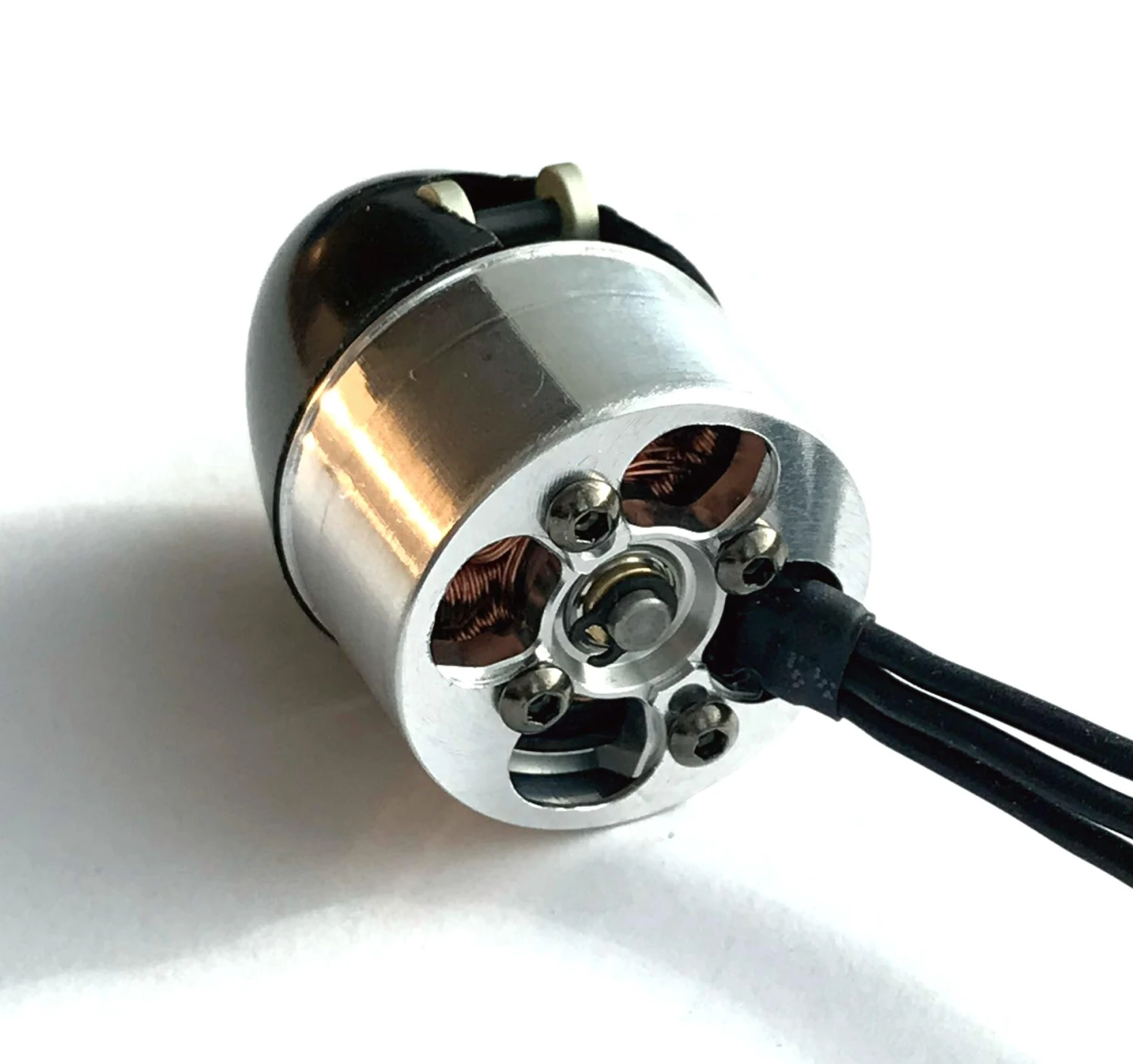

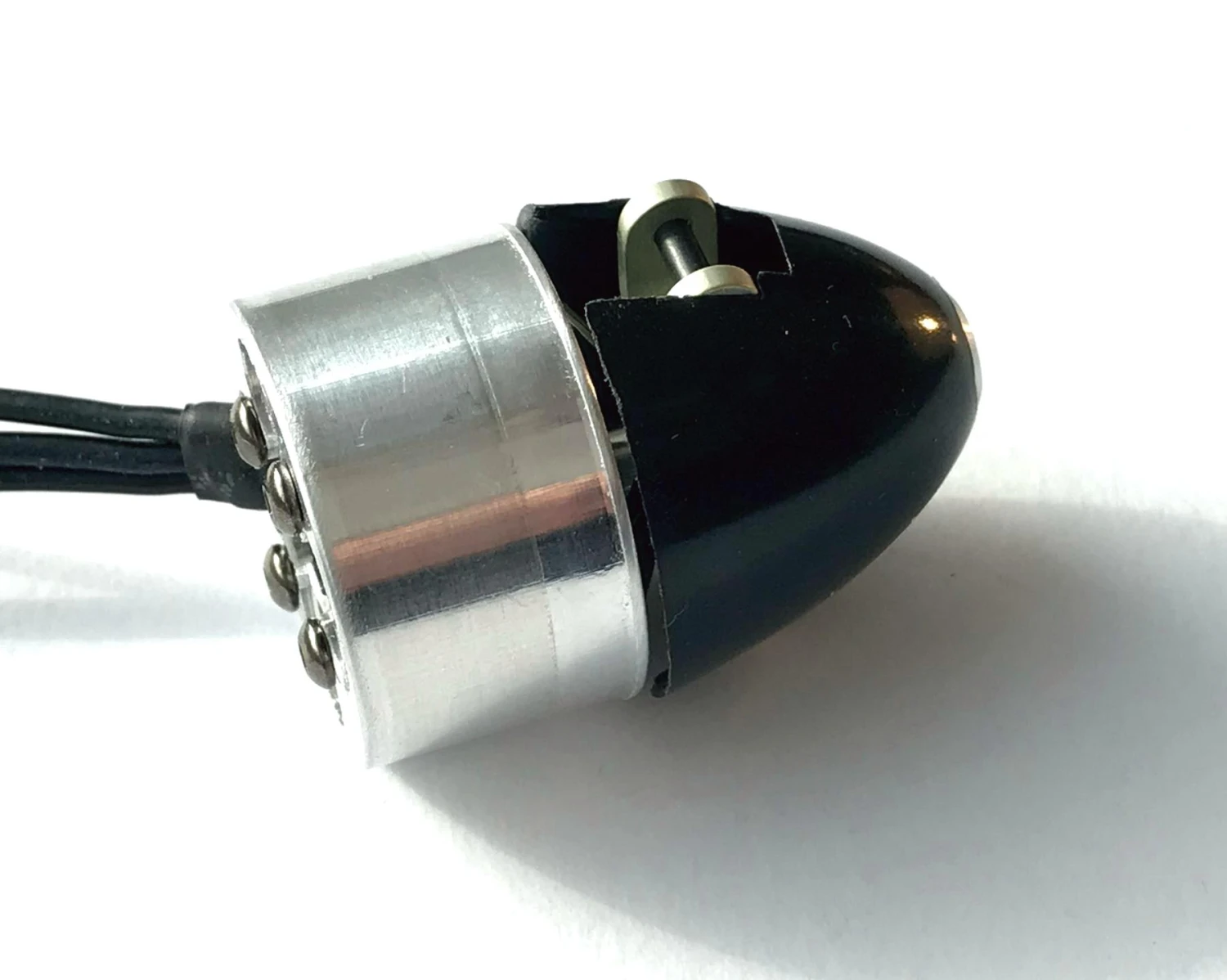

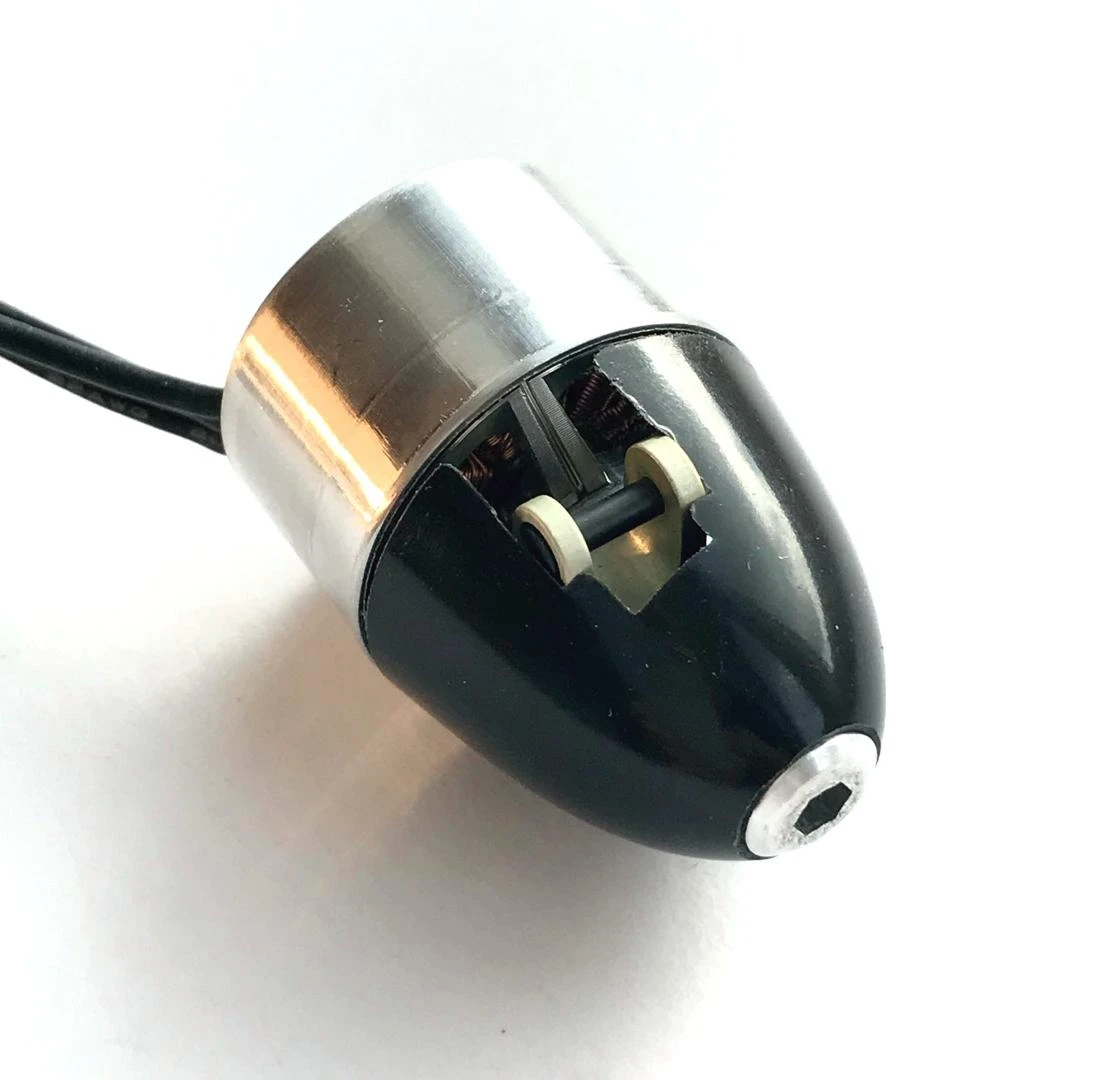

The mount is recessed to allow the outrunner motor to be fitted within the firewall, and the front aligns with VM25 mm and CN 25 mm spinners.

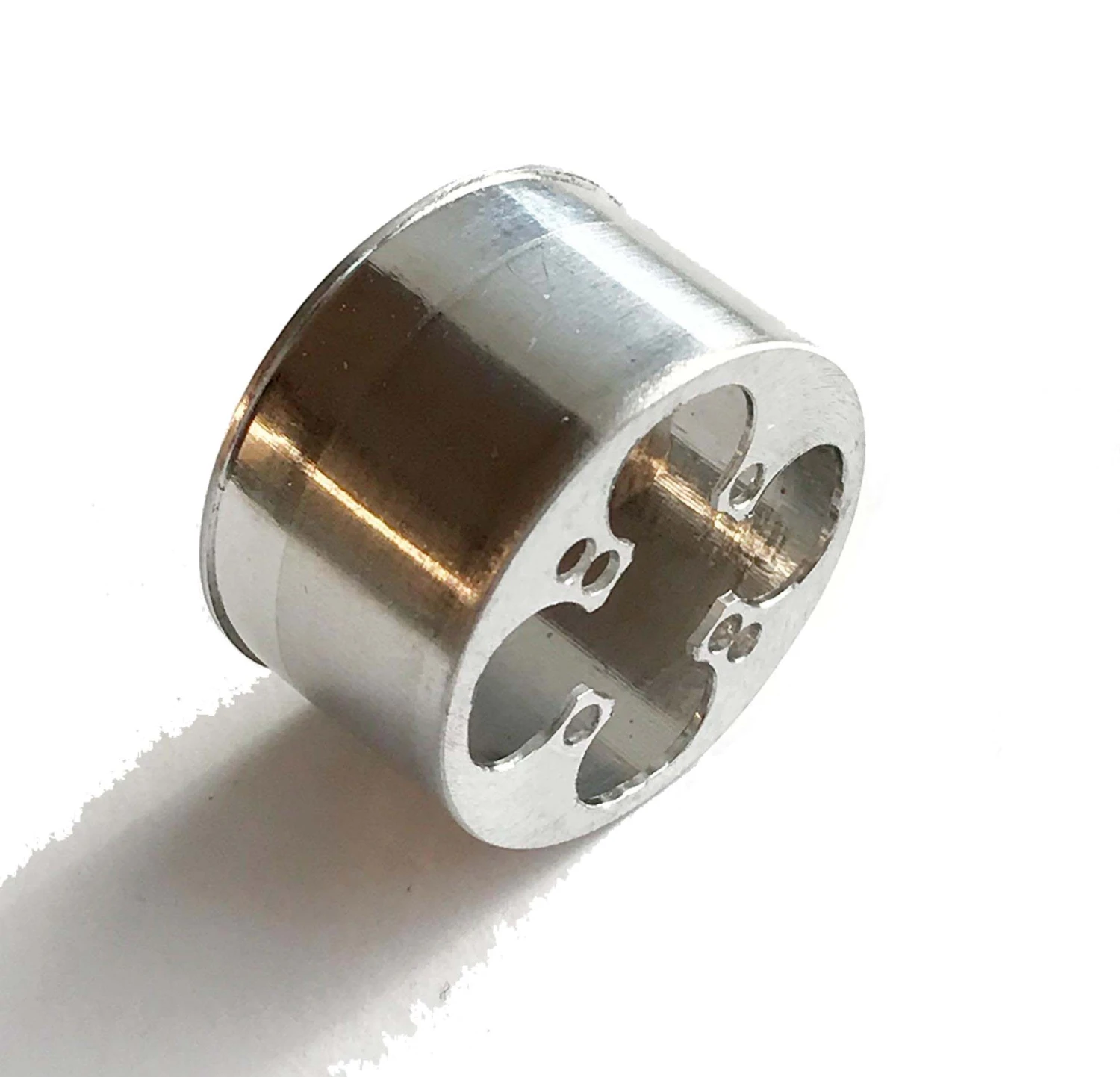

The mount has 4 M2 holes on a 12 mm diameter circle plus 2 on a 16 mm diameter.
| Electric DLG CNC Motor Mount | |
|---|---|
| Fuselage outside diameter | 25.0 mm |
| Fuselage internal diameter | 24.5 mm |
| Mount Internal diameter | 23.9 mm |
| Depth from front to front of rear face | 11.5 mm |
| Predrilled holes A | 4 holes on a 12 mm circle |
| Predrilled holes B | 2 holes on a 16 mm circle |
| Motor mounting hole diameter | 2 mm |
| Weight | 1.5 g |
These mounts are:
- Easy to install.
- Very strong.
- Superb machining.
- They look great!
To attach these CNC motor mounts to carbon/kevlar/glass fuselages a strong high temperature glue is required. We recommend this glue or JB Weld. Epoxy can be used but the strength is impaired at high temperatures.
