Mini Q Slope/Electric Sports Racer 81cm

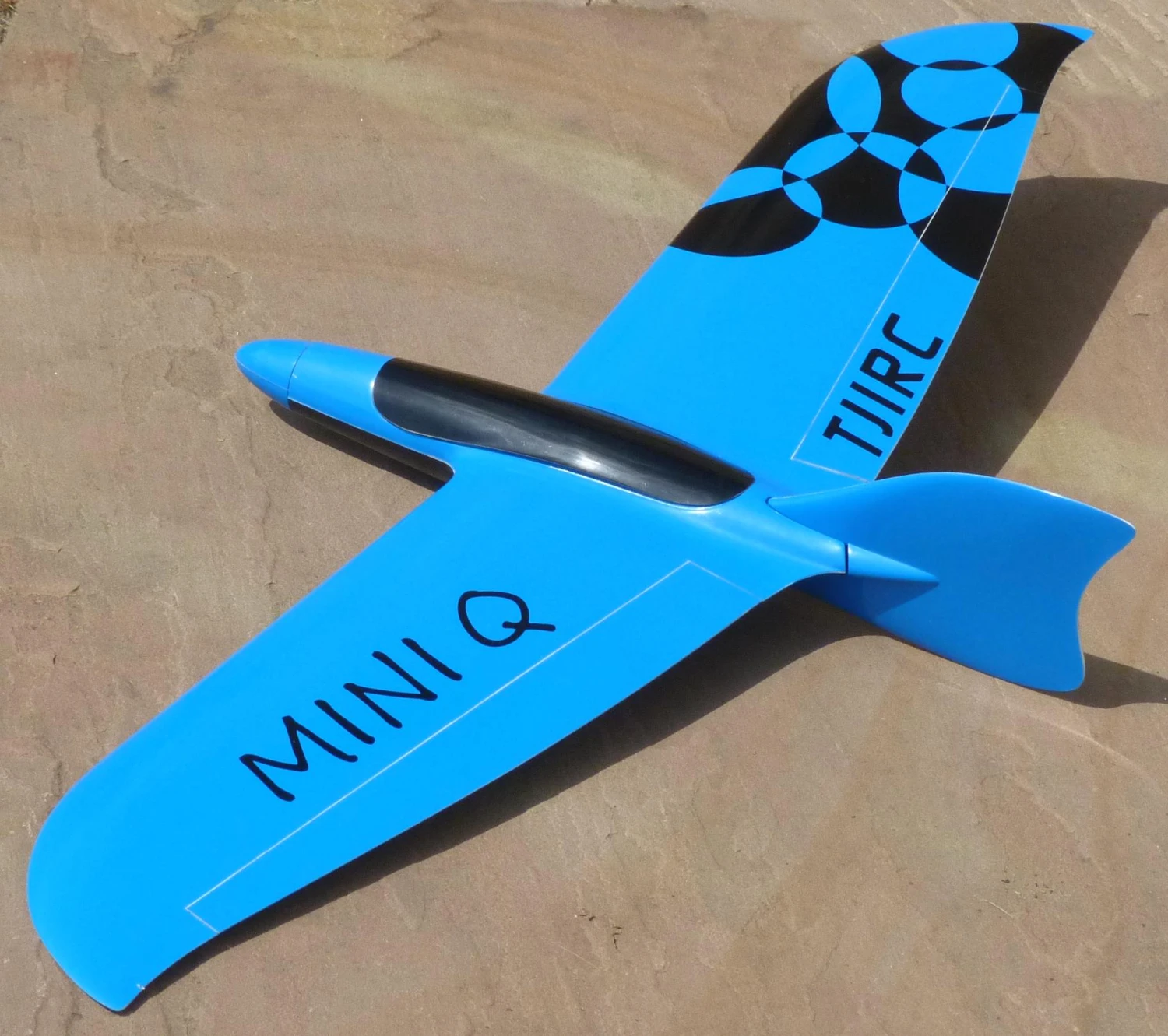

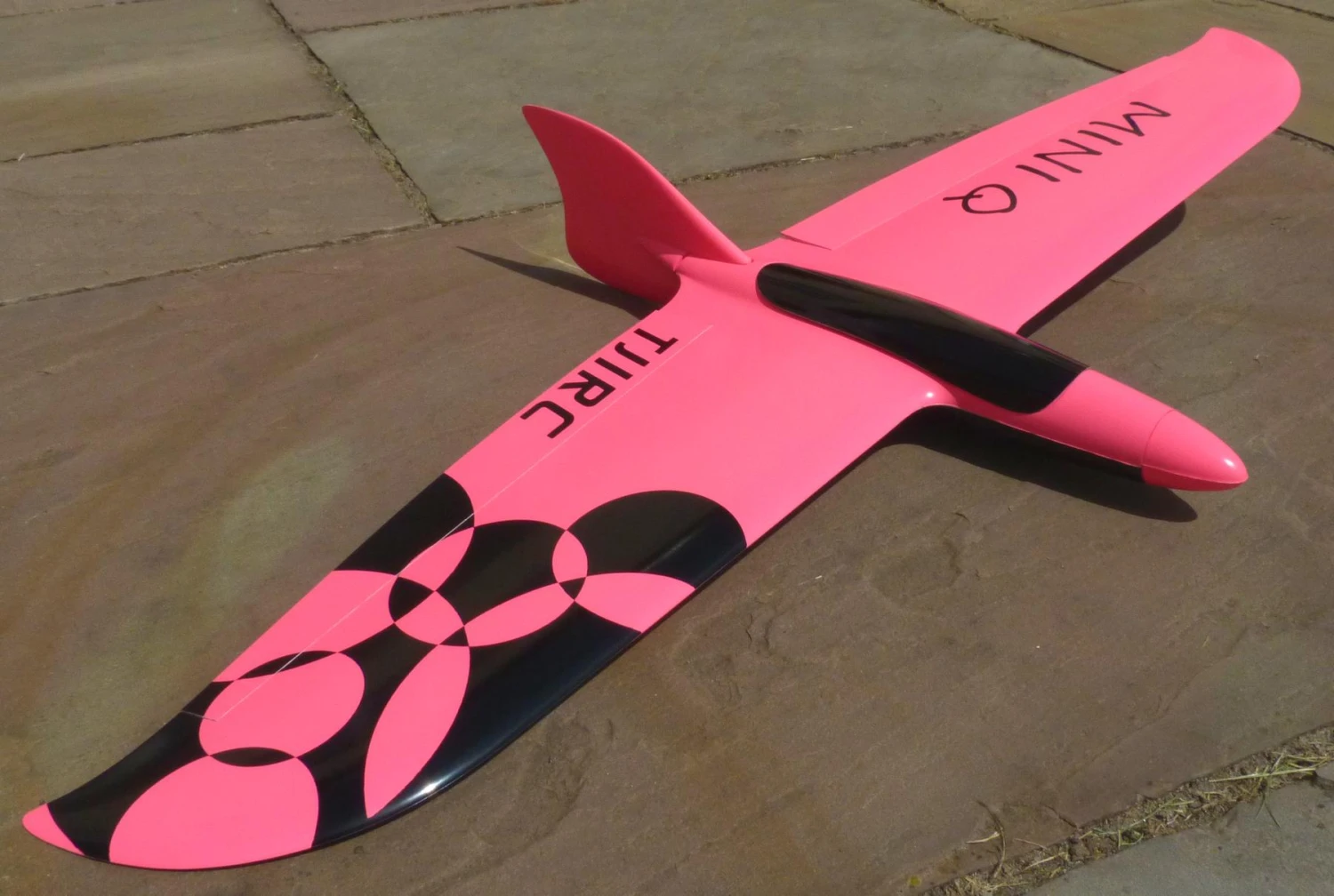

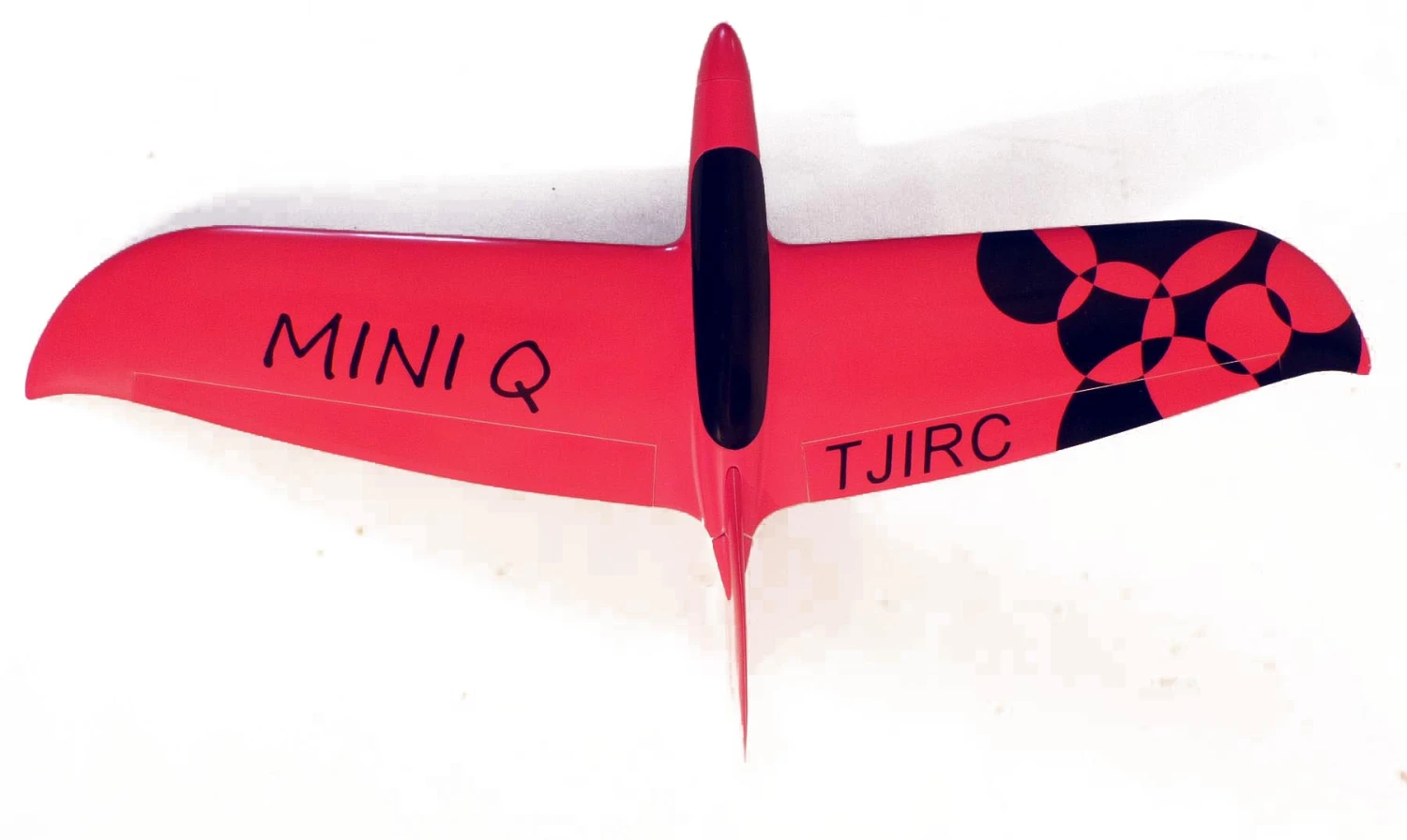

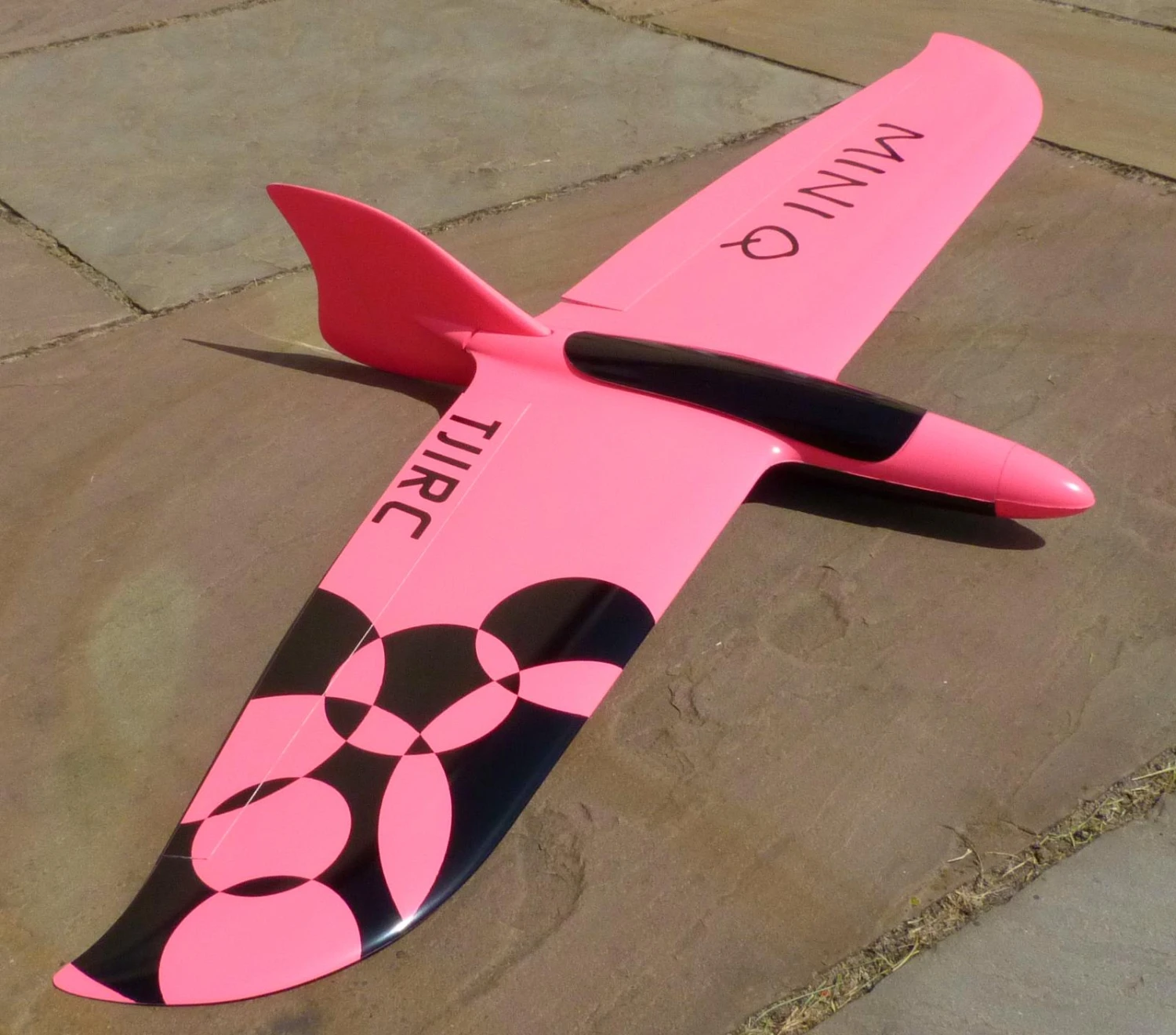

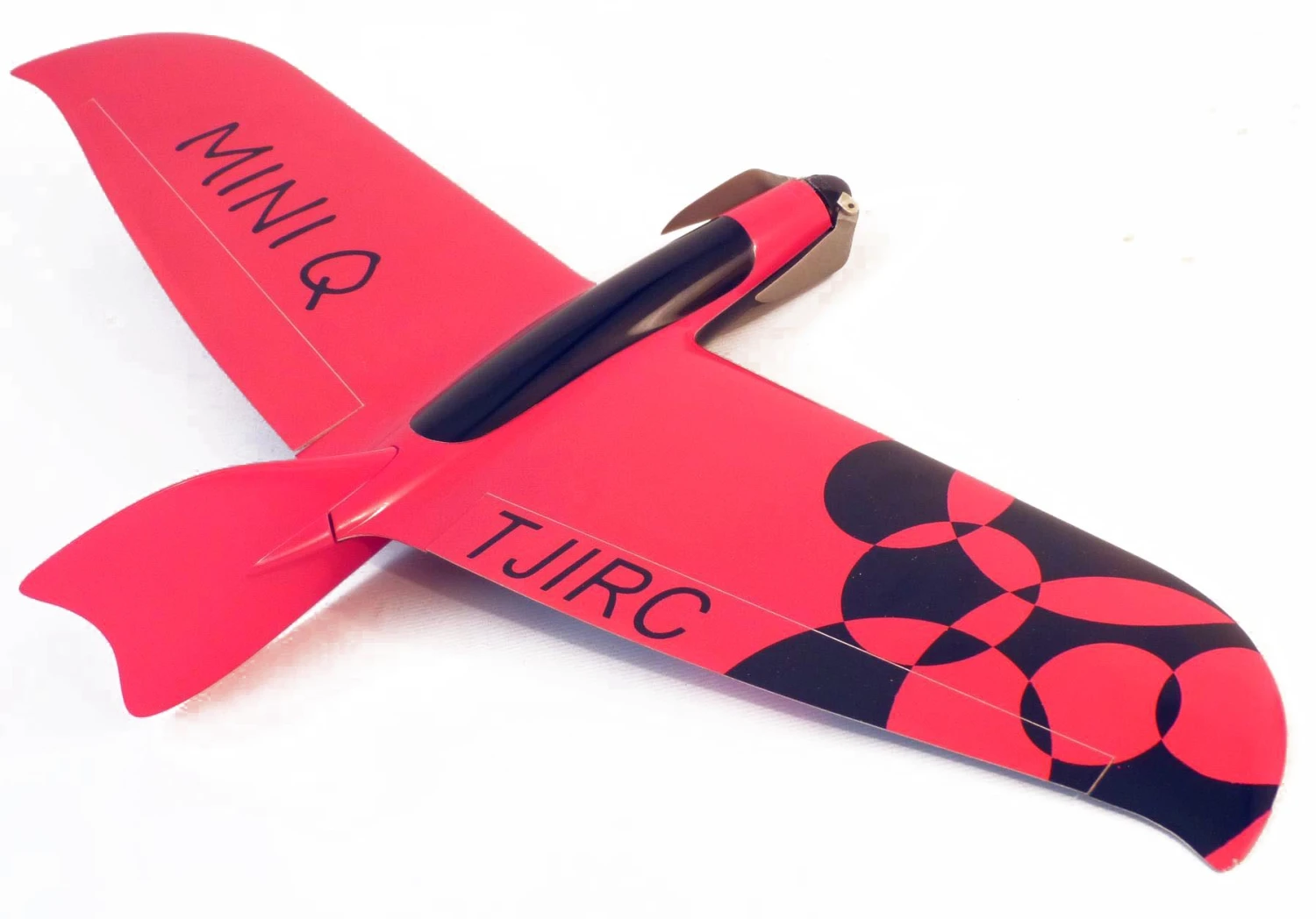

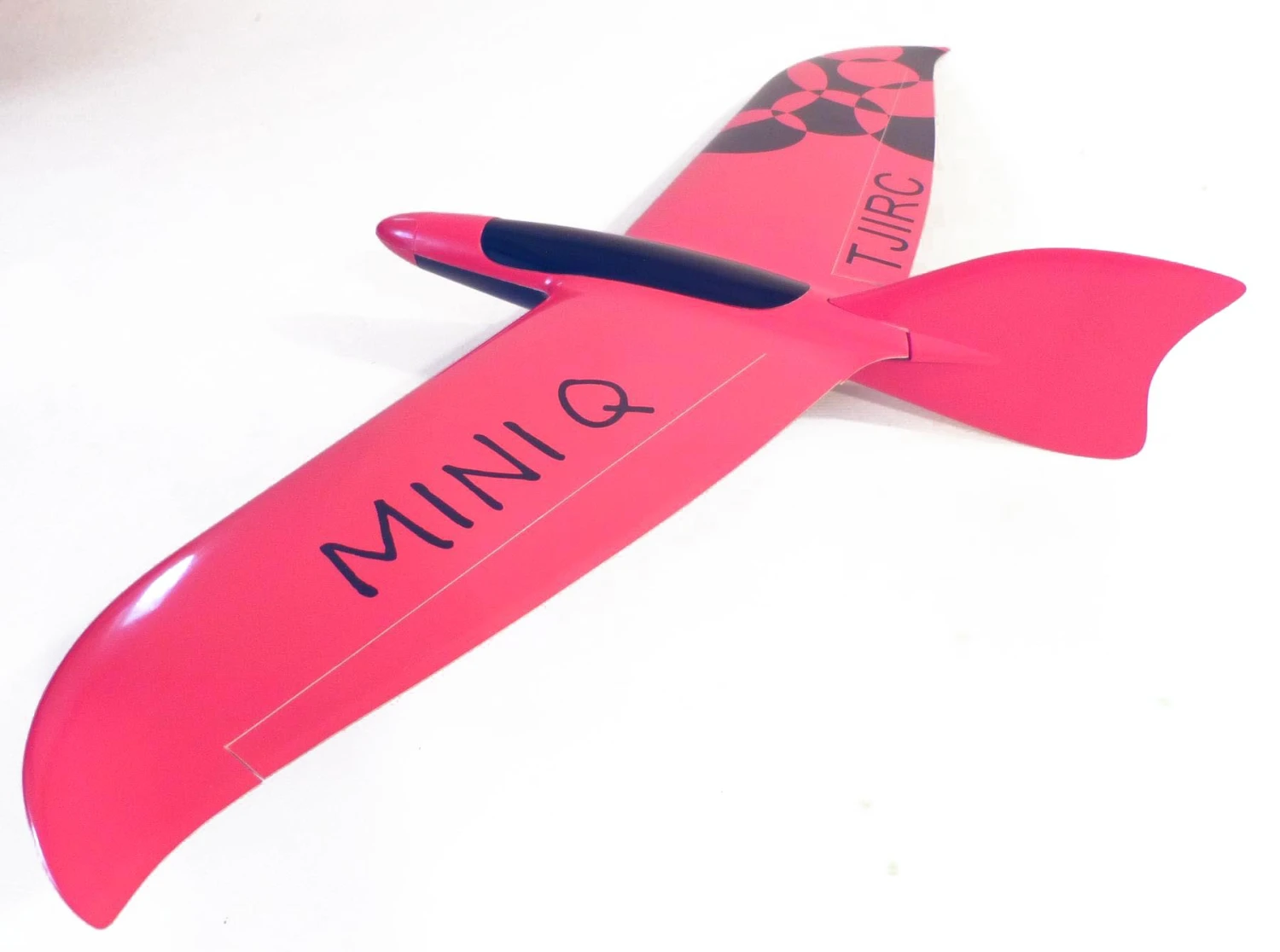

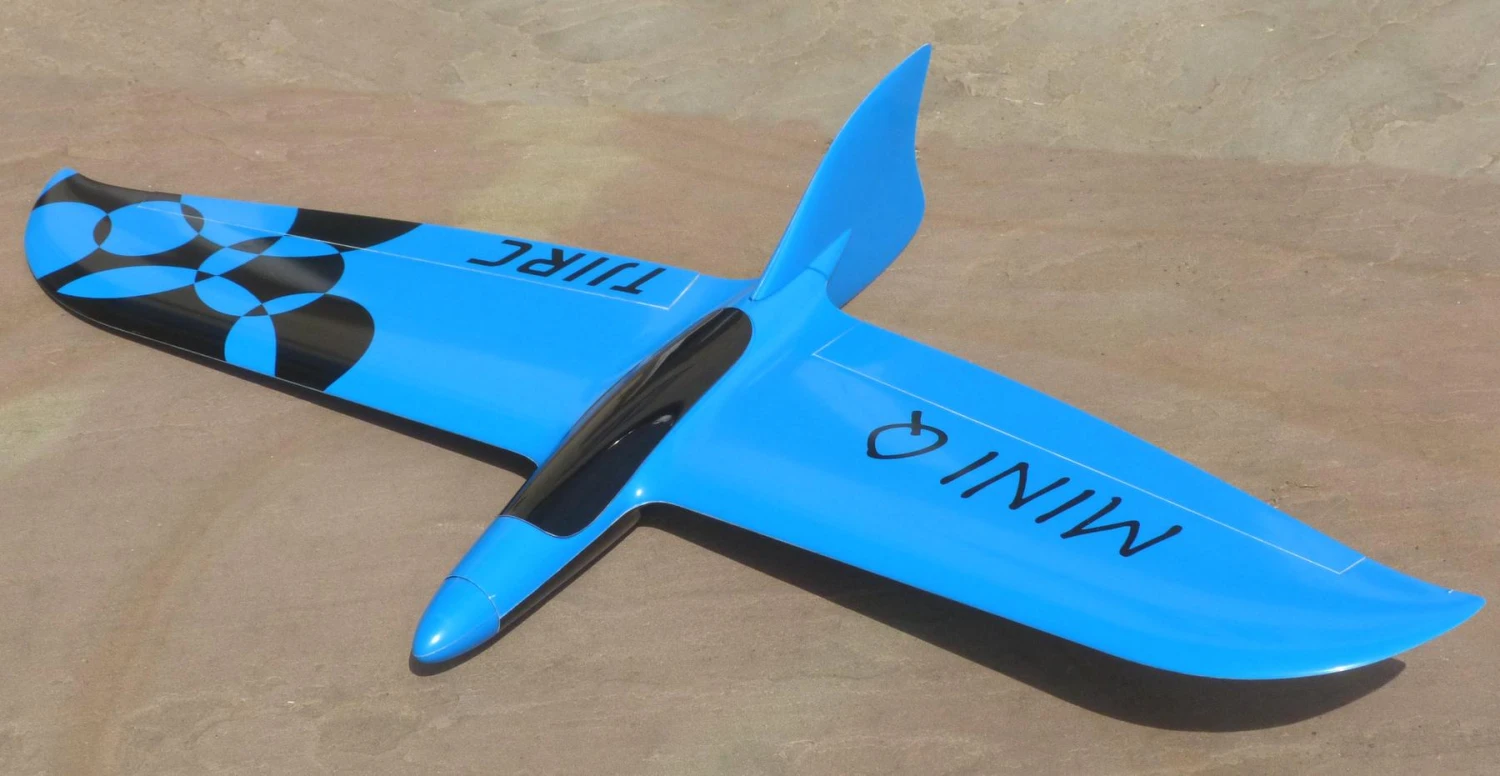

The Mini Q is a lovely 80 cm (32″) composite glass/carbon flying wing model that can be built as an electric sports racer or as a slope soarer. It is fast! We previously listed it as Tiny Q.

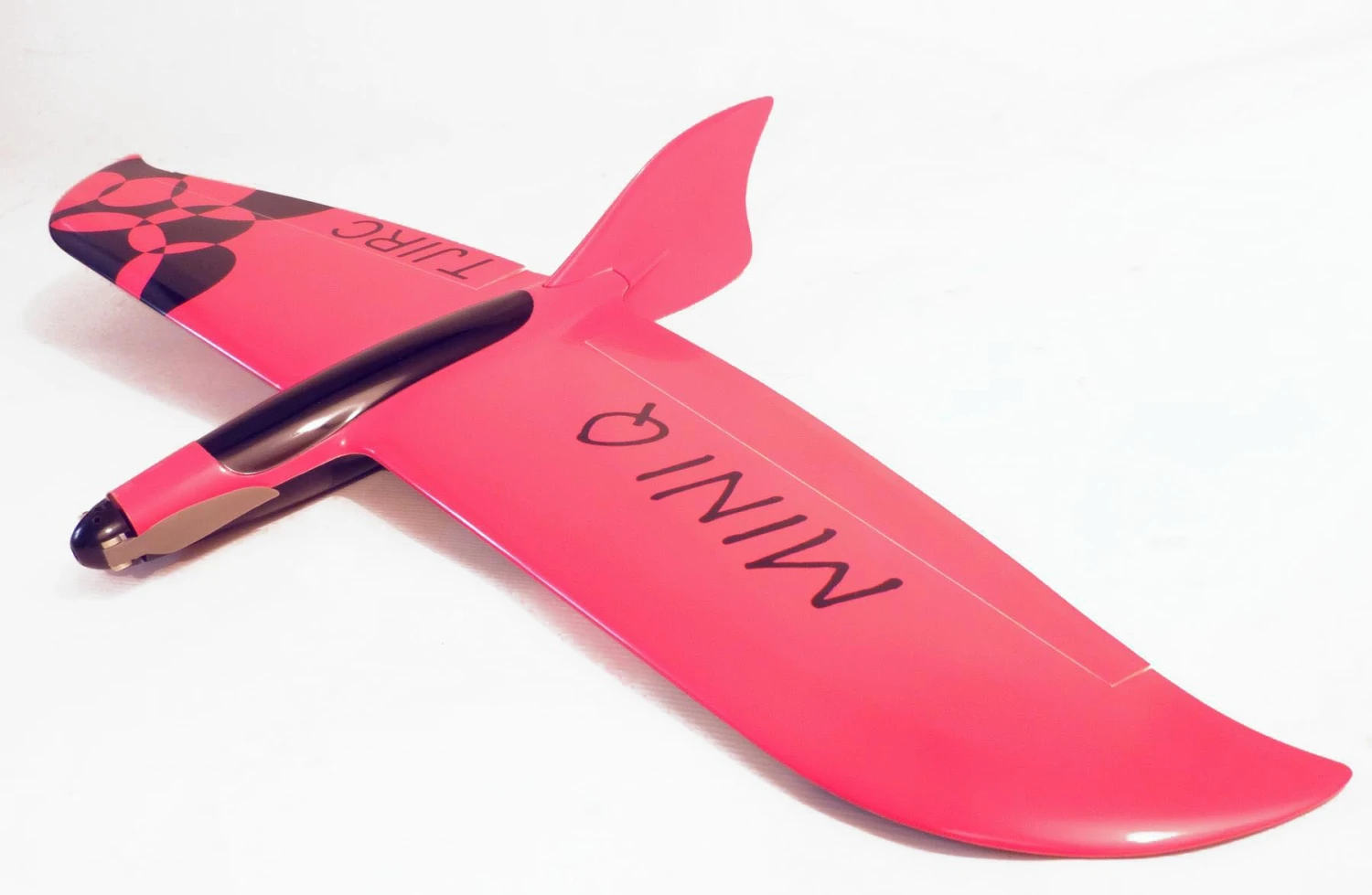

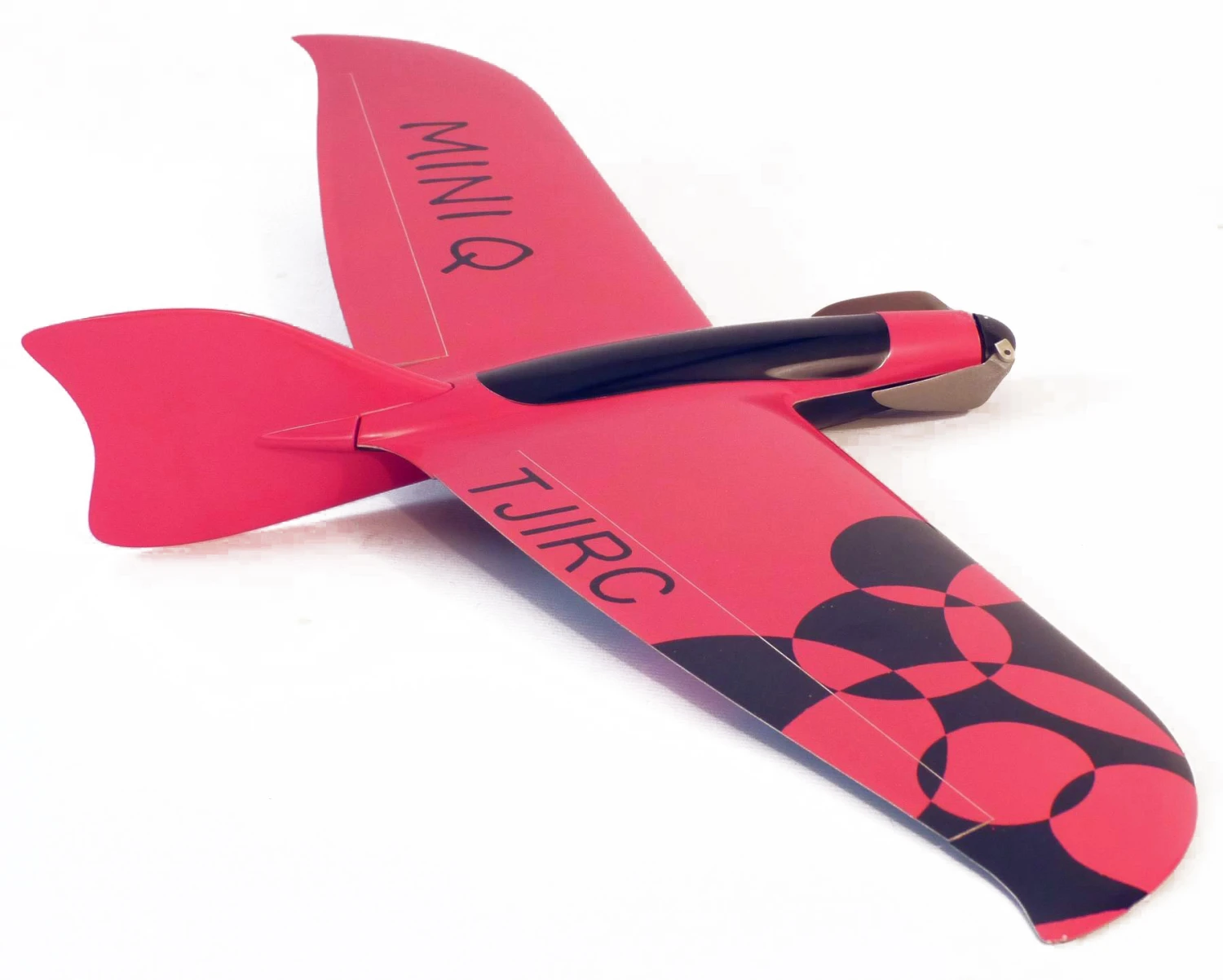

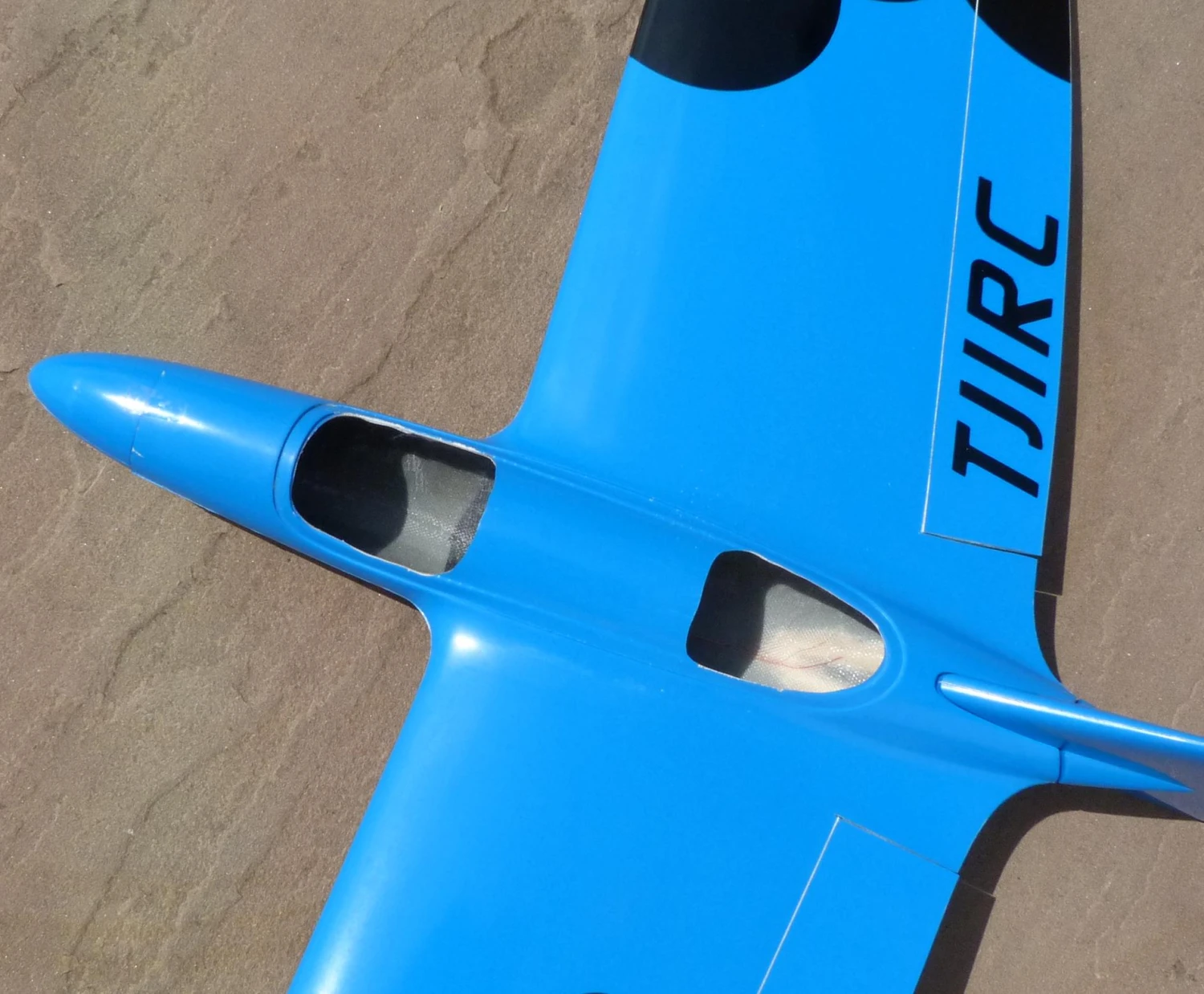

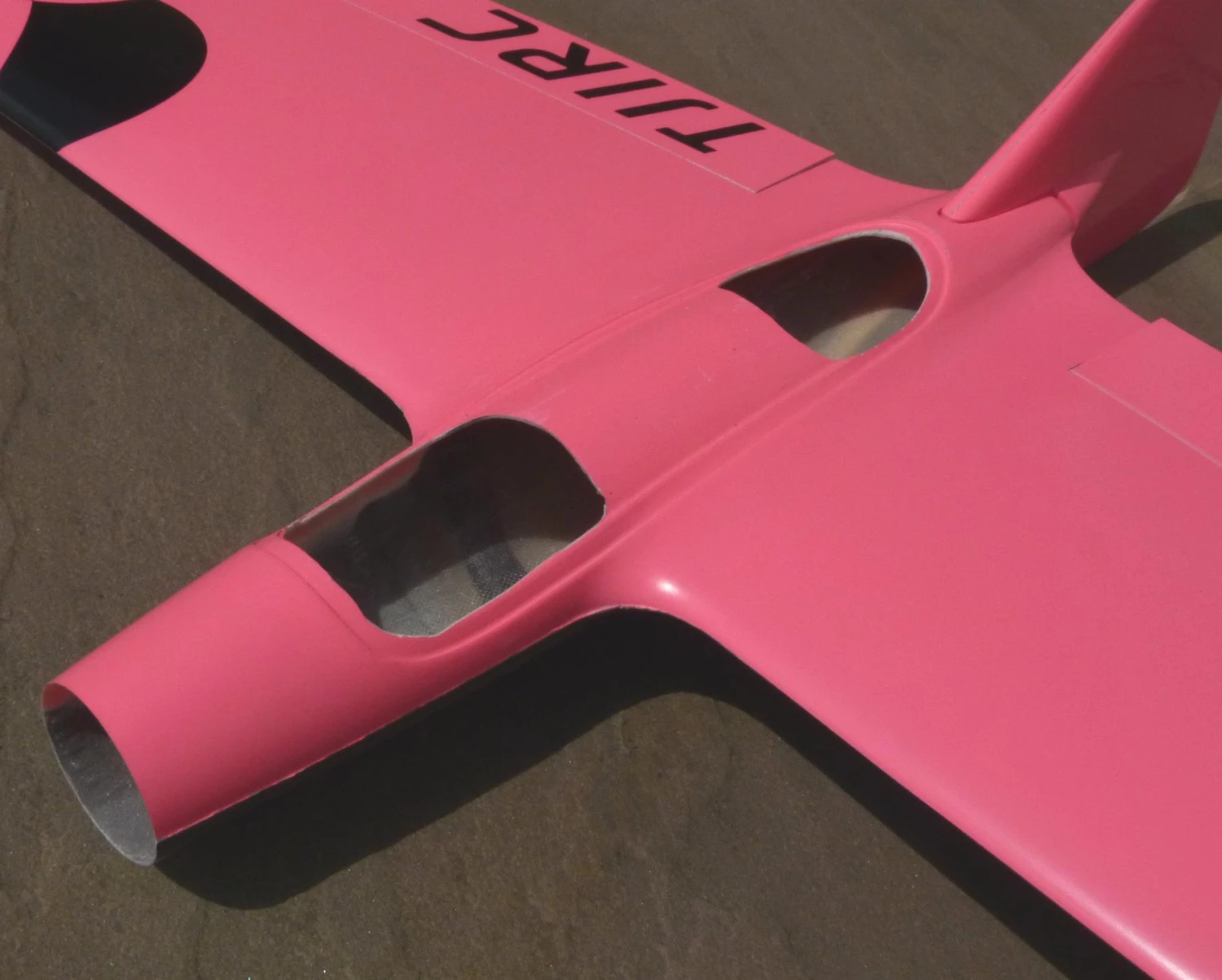

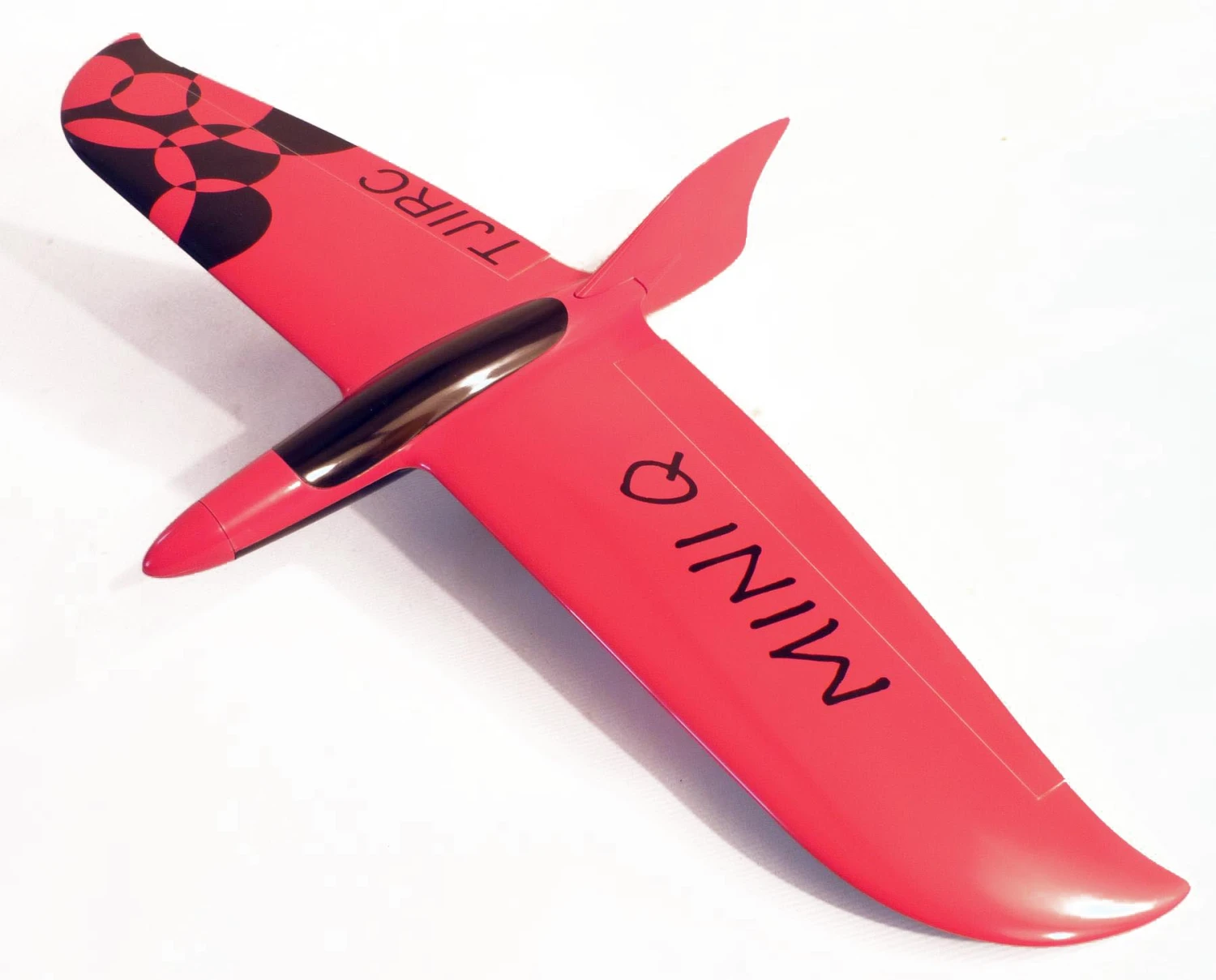

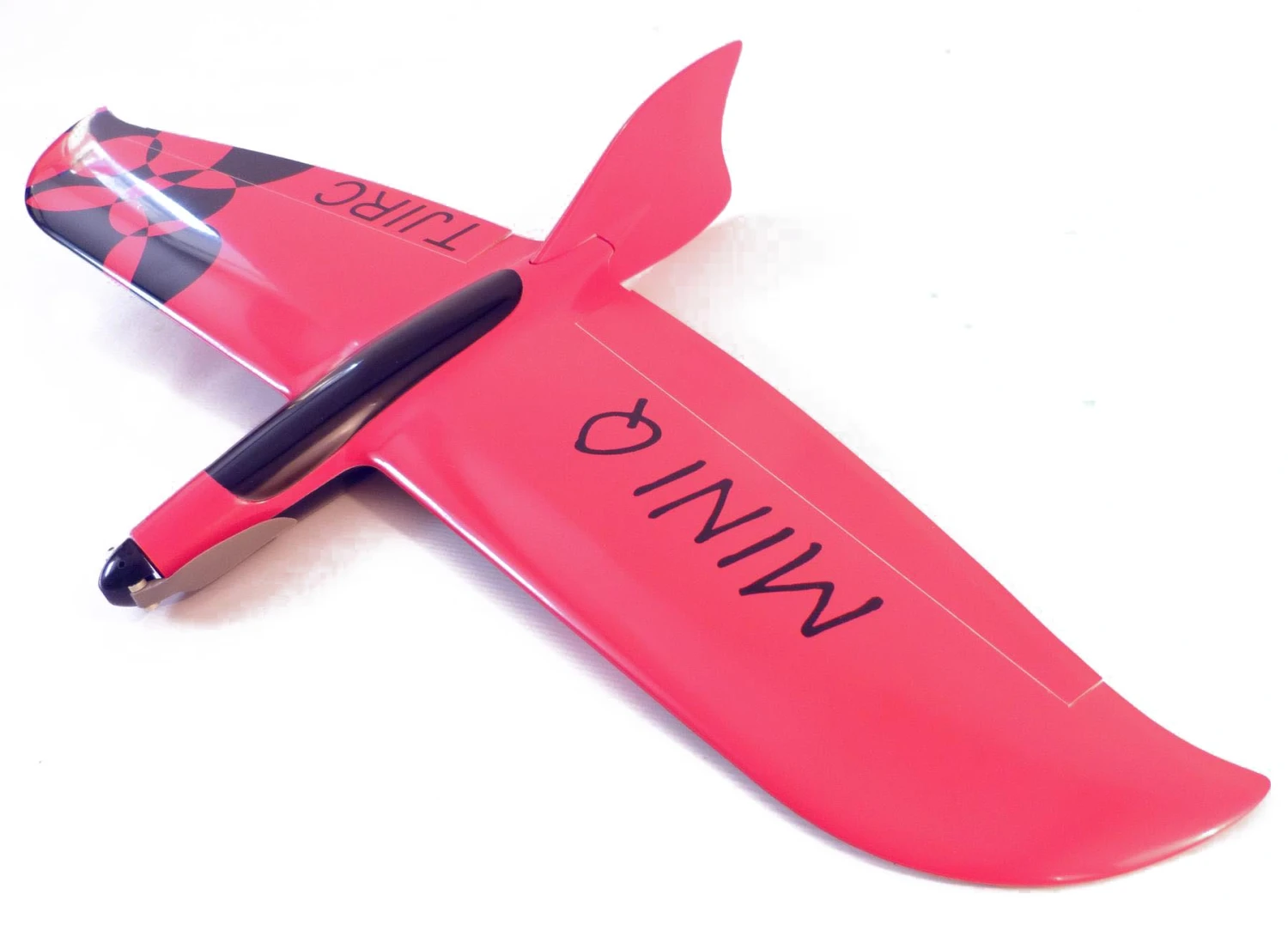

The kit consist of a very nicely molded glass and carbon one piece wing and pod. The attractively shaped fin is also molded and fits into a slot in the rear of the pod. A little fettling may be required to get it to slide into place smoothly. A nosecone molding and a carbon firewall are also supplied. Either one of these should be fitted depending on whether the model is built as a slope soarer or an electric racer . The firewall is about 33 mm diameter so it should be possible to mount 28 mm outrunner motors without too much difficulty.

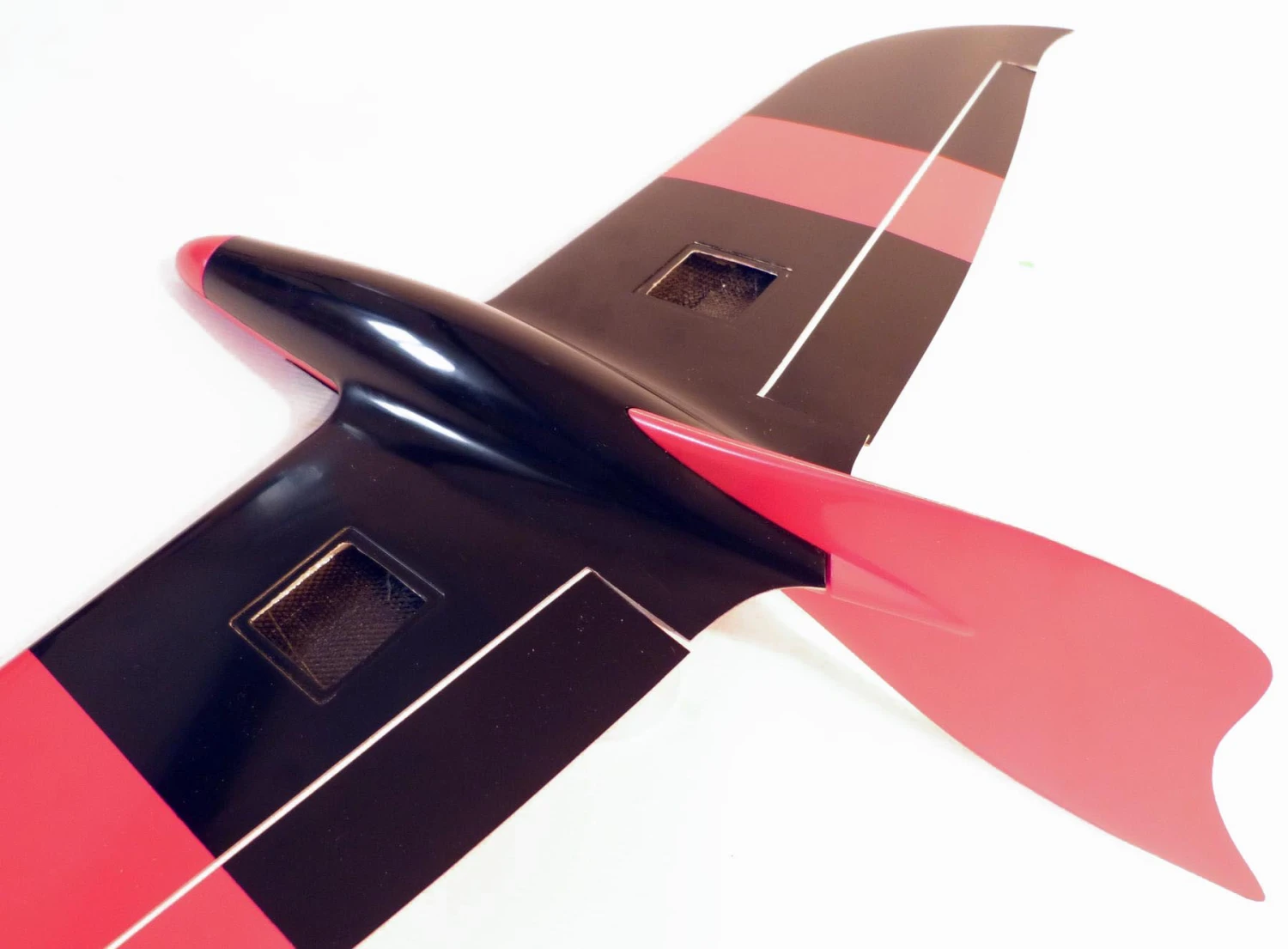

A complete accessory pack is supplied including elevon pushrods with clevises, plywood servo mounts suitable for KST X08 servos, and carbon control horns and servo covers.

Note this model is quite highly loaded and is not suitable for less experienced modellers. Don’t forget to reflex the elevons 2mm and start with a forward CG and launch over long grass until the trim has been dialled-in.

Mini Q Electric Specifications
Wing span	0.81 m	32 in
Wing area	10.2 dm2	158 sq in
Length	43 cm	17 in
Flying weight from	397 g	14.0 oz
Wing loading	39 g/dm	12.9 oz/sq ft
Aspect ratio	6.4
Wing airfoil	7% proprietary
Dihedral (EDA)	2.5º
Spinner Diameter	32 mm
Centre of Gravity	17 – 22 mm from wing leading edge
Controls	Elevons, throttle

Mini Q Electric Typical Weights
Wing & body	178 g	6.3 oz
Fin	18.5 g	0.7 oz
Accessories	10 g	0.4 oz
Total structure	210 g	7.4 oz
Receiver	5 g	0.2 oz
Elevon servos	16 g	0.6 oz
Speed control	12 g	0.4 oz
Motor	40 g	1.4 oz
Prop & spinner	15 g	0.5 oz
Battery	100 g	3.5 oz
Glue etc	2 g	0.1 oz
Flying weight	397 g	14.0 oz

Mini Q Slope Soarer Specifications
Wing span	0.81 m	32 in
Wing area	10.2 dm2	158 sq in
Length	43 cm	17 in
Flying weight from	336 g	11.9 oz
Wing loading	33 g/dm	10.8 oz/sq ft
Aspect ratio	6.4
Wing airfoil	7% proprietary
Dihedral (EDA)	2.5º
Centre of Gravity	17 – 22 mm from wing leading edge
Controls	Elevons

Mini Q Slope Soarer Typical Weights
Wing & body	178 g	6.3 oz
Fin	18.5 g	0.7 oz
Nosecone	3.5 g	0.1 oz
Accessories	8 g	0.3 oz
Total structure	208 g	7.3 oz
Receiver	5 g	0.2 oz
Elevon servos	16 g	0.6 oz
Glue etc	2 g	0.1 oz
Battery	85 g	3.0 oz
Noseweight	20 g	0.7 oz
Flying weight	336 g	11.9 oz

Recommended R/C-nano gear only
Elevon servos (2)	Blue Bird BMS-101AMG, Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Ripmax SD100, MKS DS65K, MKS DS75K, MKS HV75, KST X06, KST X08, KST X08H
Receivers	4+ channel rx to suit your transmitter, eg Spektrum AR6610T, AR6100e, FrSky X4R, Futaba R2106GF, Orange DSM2 compatible, Jeti Duplex R5, Multiplex Mlink RX-6-DR Light
Glider battery	HyperFlight 750 mAh 4.8V NiMH, Radient 1600 mAh 6V NiMH
Electric batery	2S – 3S 600 mAh – 1200mAh LiPo

See the Alula Flight Pack for a kit of metal geared servo, battery, and extension reald – all you need to get the model in the air except the receiver.

Manufacturer’s Recommended configuration
Motor :2207 2650kv
Propeller :6*4
Battery :2S 1200
Servo :5g – 9g mini servo
CG:10mm – 15mm

Control Throws
Aileron: +/- 3mm
Elevator: +/- 4mm
Aileron neutral: up 2 mm
