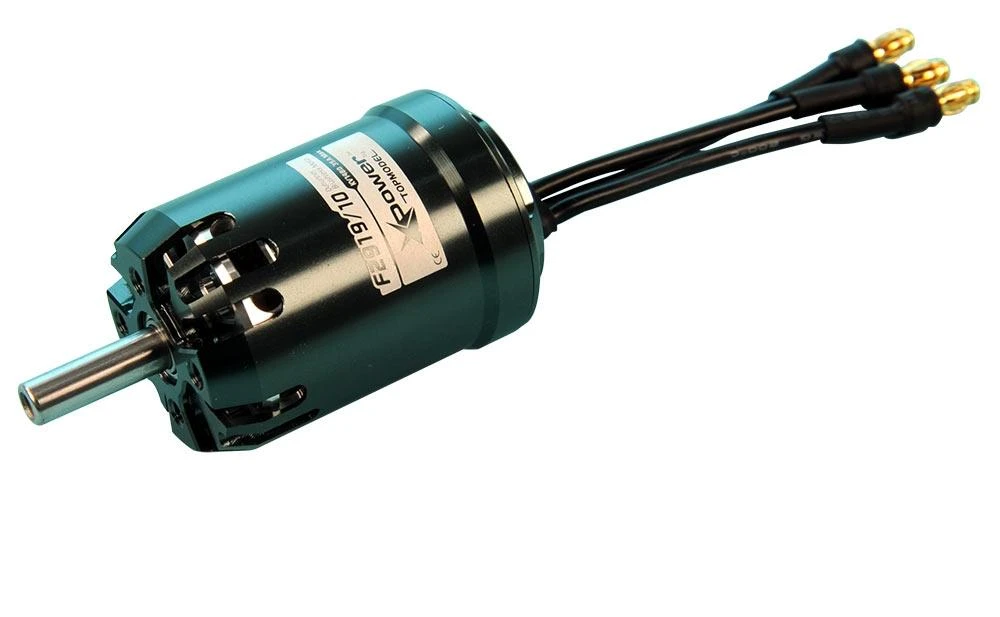

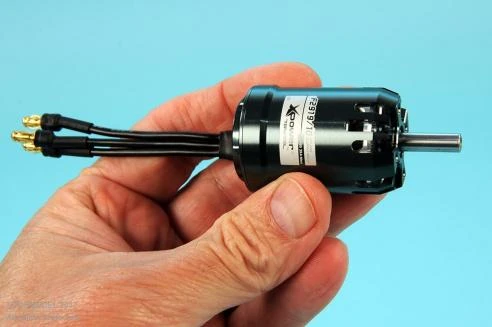

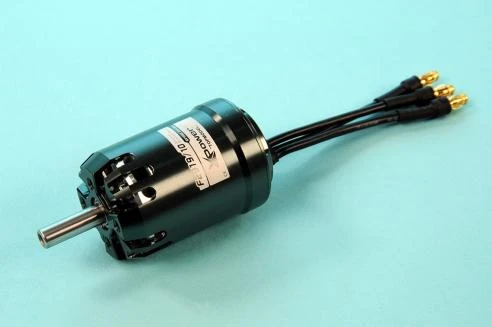

XPower F2919/10 Light 1480 RPM/V 83g Cased Outrunner

The F2919/10 Light is an excellent high performance cased outrunner for light 3m – 4m electric gliders, especially F5J competition ships up to 1800g weight. The 28mm diameter outer can does not rotate and the wires extend from the rear so it is perfect for installing in narrow glider noses, and the 5mm motor shaft stands up to dorked landings.

Eliminating the gearbox simplifies the powertrain and reduces the risk of failure. It also results in requiring a smaller (less efficient) propeller. In the past that was a disadvantage as powertrain efficiency was essential for good performance. However with the current state of technology excellent performance can be achieved even with small props, and they do offer several advantages, namely:

• Less stuff hanging out in the wind and less glide drag, so overall better glide performance, especially at speed.
• Usually a higher pitch speed is obtained, allowing very fast transitions to a low level thermal a long way away (if you are one of those god-pilots who know there the lift is).
• Smaller propellers reduce the effects of torque, making the initial climb out easier.

XPower F2919/10 Light Specifications
KV	1480 RPM/V
Max current	38A for 30s
Power	400W
Manufacturer’s Rm	30 mOhm
Measured Rm	35.6 mOhm

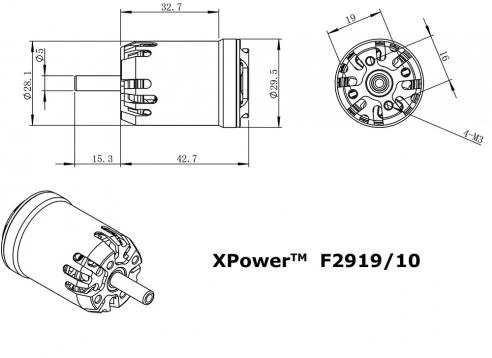

Dimensions	Ø28.1×42.7 mm
Shaft diameter	5.0 mm
Weight	83 g
Number of poles	12
Recommended number of cells	3 LiPo
Recommended props	10×5-11×6″

Measurements
Prop: Aeronaut CAM carbon 10×6″ + 32mm spinner
Controller: XPower Xreg40 V5
Battery pack: Hot-LiPS VHD 1300 3S1P
RPM: 11900
Current drain: 34A
Static thrust: 1.5kg

Prop: carbon 10×6″ + 32mm spinner
Controller: XPower Xreg40 V5
Battery pack: Hot-LiPS VHD 1300 3S1P
RPM: 12000
Current drain: 32A
Static thrust: 1.4kg

Prop: carbon 11×6″ + 32mm spinner
Controller: XPower Xreg40 V5
Battery pack: Hot-LiPS VHD 1300 3S1P
RPM: 11000
Current drain: 37A
Static thrust: 1.7kg
